Enhanced Electronic Stability Control - ESC with Traction Control - Emergency Brake Assist - EBA - Hill Start Assist - HSA and Trailer Sway Control
Ford Easy-Fuel Capless Refuelling System
Ford KeyFree System
IPS - Intelligent Protection System
NCAP Pack
Remote Central-Double Locking
Seats - ISOFIX Mounting Provision for Child Seats
Tailgate Wash-Wipe
Thatcham Category 1 Alarm
Performance
EPAS - Electric Power Assisted Steering
Front Suspension - Independent with MacPherson Struts and Anti-Roll Bar
Technical Specification
Performance
Engine Torque - MKG
24.5
0 to 62 mph (secs)
8.9
Top Speed
136
Engine Power - BHP
155
Engine Power - PS
1
0 to 60 mph (secs)
0
Engine Power - KW
114
Engine Torque - LBS.FT
177
Engine Torque - NM
240
General
Safety Concerns?
0
Special Edition
0
Special Order
0
Insurance Group 1 - 50 Effective January 07
17E
Service Interval Mileage
18000
Service Interval Frequency - Months
24
Timing Belt Interval Mileage
150000
Timing Belt Interval Frequency - Months
120
NCAP Adult Occupant Protection %
87
NCAP Child Occupant Protection %
84
NCAP Pedestrian Protection %
64
NCAP Safety Assist %
60
NCAP Overall Rating - Effective February 09
5
Badge Power
155
Badge Engine CC
1
Vehicle Homologation Class
M1
Coin Series
Titanium X
Coin Description
EcoBoost Hybrid mHEV 155
Standard manufacturers warranty - Years
3
Standard manufacturers warranty - Mileage
60000
Manufacturers Paintwork Guarantee - Years
1
Man Corrosion Perforation Guarantee - Years
12
Generation Mark
7
Alternative Fuel Qualifying
0
Tyres
Alloys?
1
Space Saver?
0
Tyre Size Front
205/40 R17
Tyre Size Rear
205/40 R17
Tyre Size Spare
TYRE REPAIR KIT
Wheel Type
17" ALLOY
Wheel Style
8 SPOKE
Weight and Capacities
Gross Vehicle Weight
1685
Fuel Tank Capacity (Litres)
42
Minimum Kerbweight
1219
Max. Loading Weight
466
Luggage Capacity (Seats Up)
292
No. of Seats
5
Max. Roof Load
60
Luggage Capacity (Seats Down)
1093
Turning Circle - Kerb to Kerb
10.5
Vehicle Dimensions
Wheelbase
2493
Width (including mirrors)
1941
Height
1476
Length
4040
Width
1735
Engine and Drive Train
Cylinders - Bore (mm)
71.9
Cylinders - Stroke (mm)
82
CC
998
Cylinders
3
Cylinder Layout
IN-LINE
Number of Valves
12
Camshaft
DOHC
Fuel Delivery
TURBO DIRECT INJECTION
Catalytic Convertor
1
Engine Layout
FRONT TRANSVERSE
Compression Ratio
10.0:1
Transmission
MANUAL
Gears
6 SPEED
Emissions - ICE
WLTP - CO2 (g/km) - Comb
116
WLTP - CO2 (g/km) - Comb - TEH
123
WLTP - CO2 (g/km) - Comb - TEL
116
Standard Euro Emissions
EURO 6
Fuel Consumption - ICE
WLTP - MPG - Low
43.5
WLTP - MPG - Medium
60.1
WLTP - MPG - High
64.2
WLTP - MPG - Extra High
51.4
WLTP - MPG - Comb
55.4
WLTP - MPG - Comb - TEL
55.4
WLTP - MPG - Comb - TEH
52.3
WLTP - FC (l/100km) - Low
6.5
WLTP - FC (l/100km) - Medium
4.7
WLTP - FC (l/100km) - High
4.4
WLTP - FC (l/100km) - Extra High
5.5
WLTP - FC (l/100km) - Comb
5.1
WLTP - FC (l/100km) - Comb - TEL
5.1
WLTP - FC (l/100km) - Comb - TEH
5.4
EC Directive 1999/100/EC Applies
0
Test Cycles
Emissions Test Cycle
WLTP
RDE Certification Level
RDE 2
General

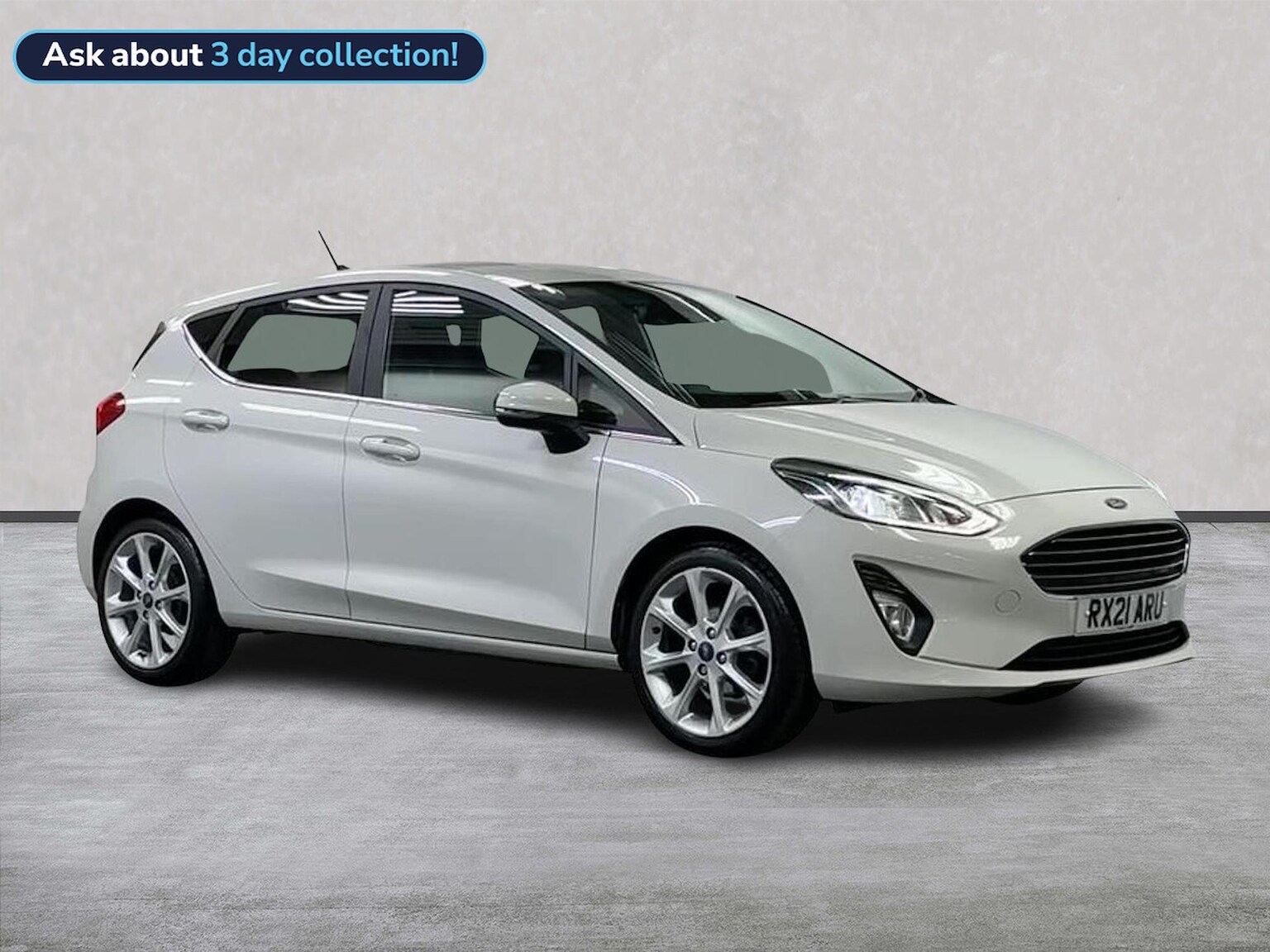

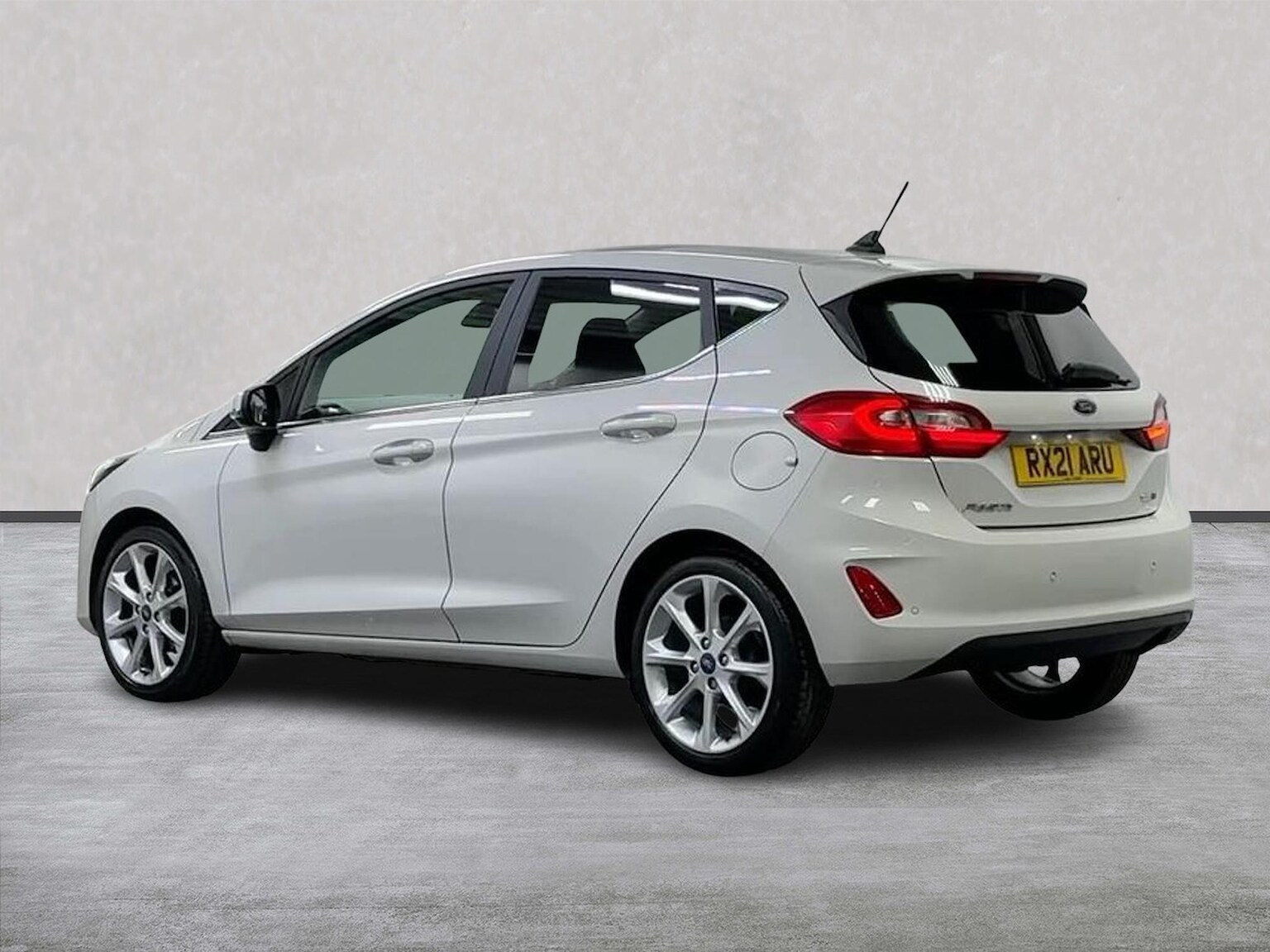

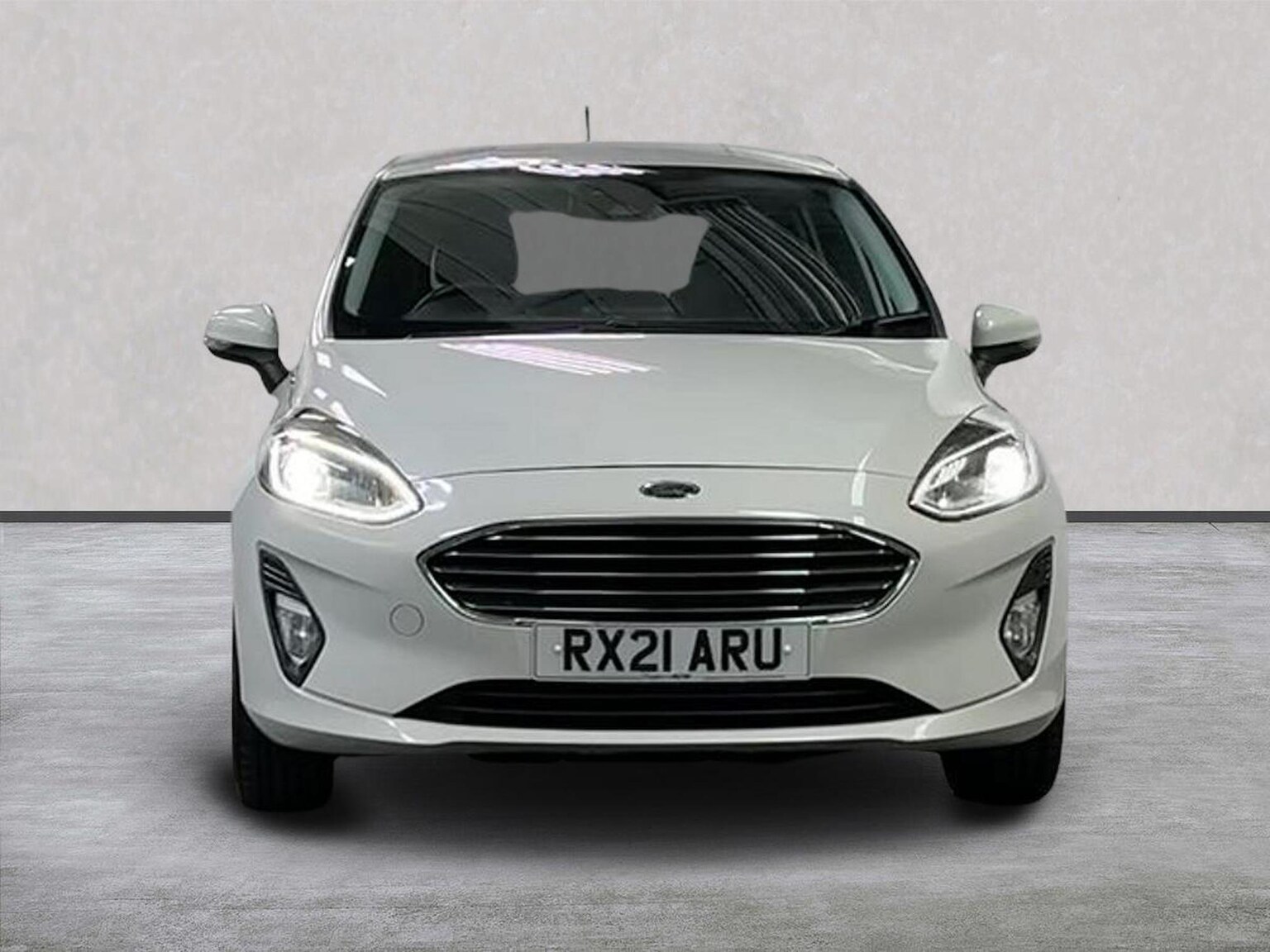

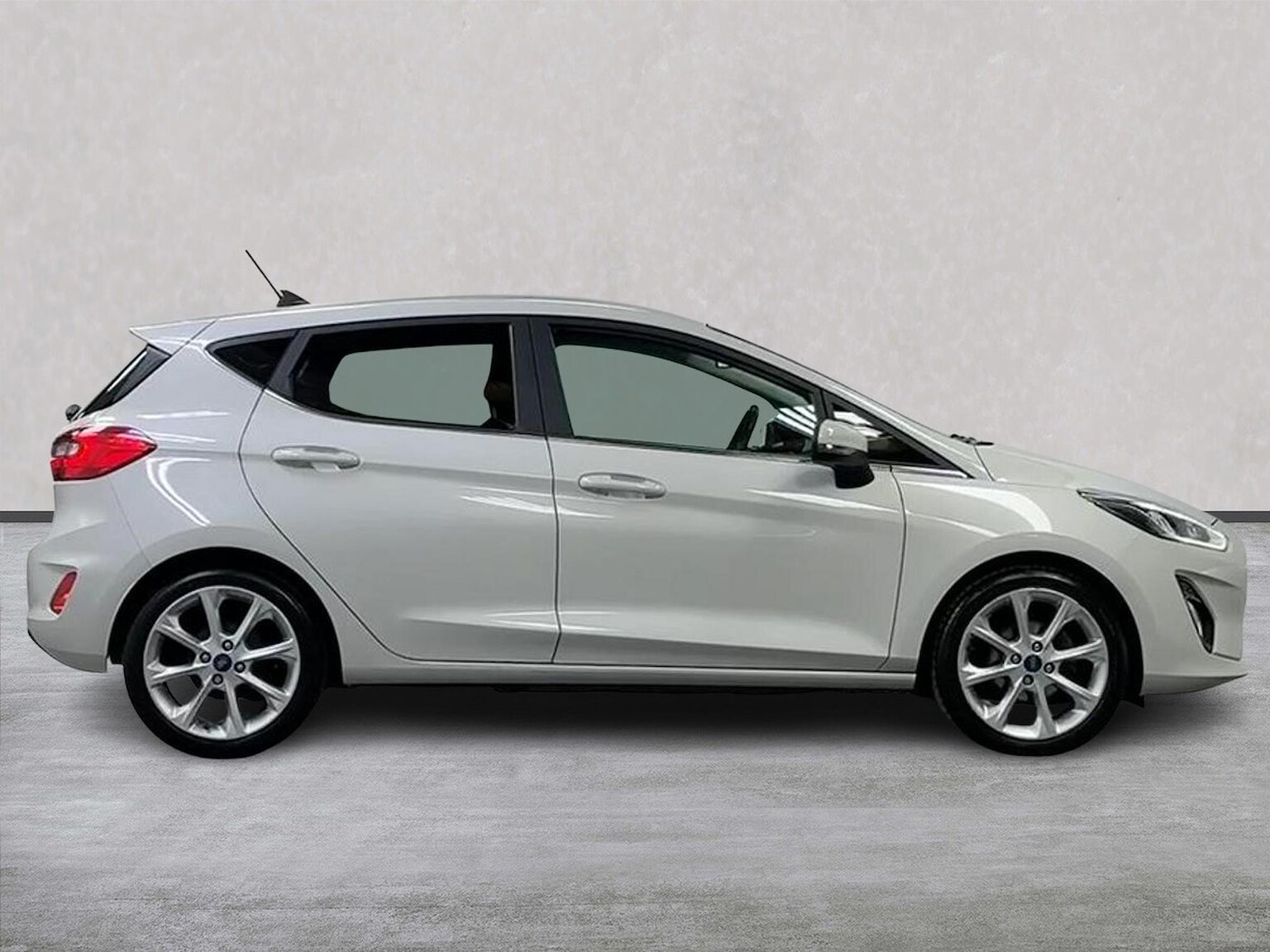

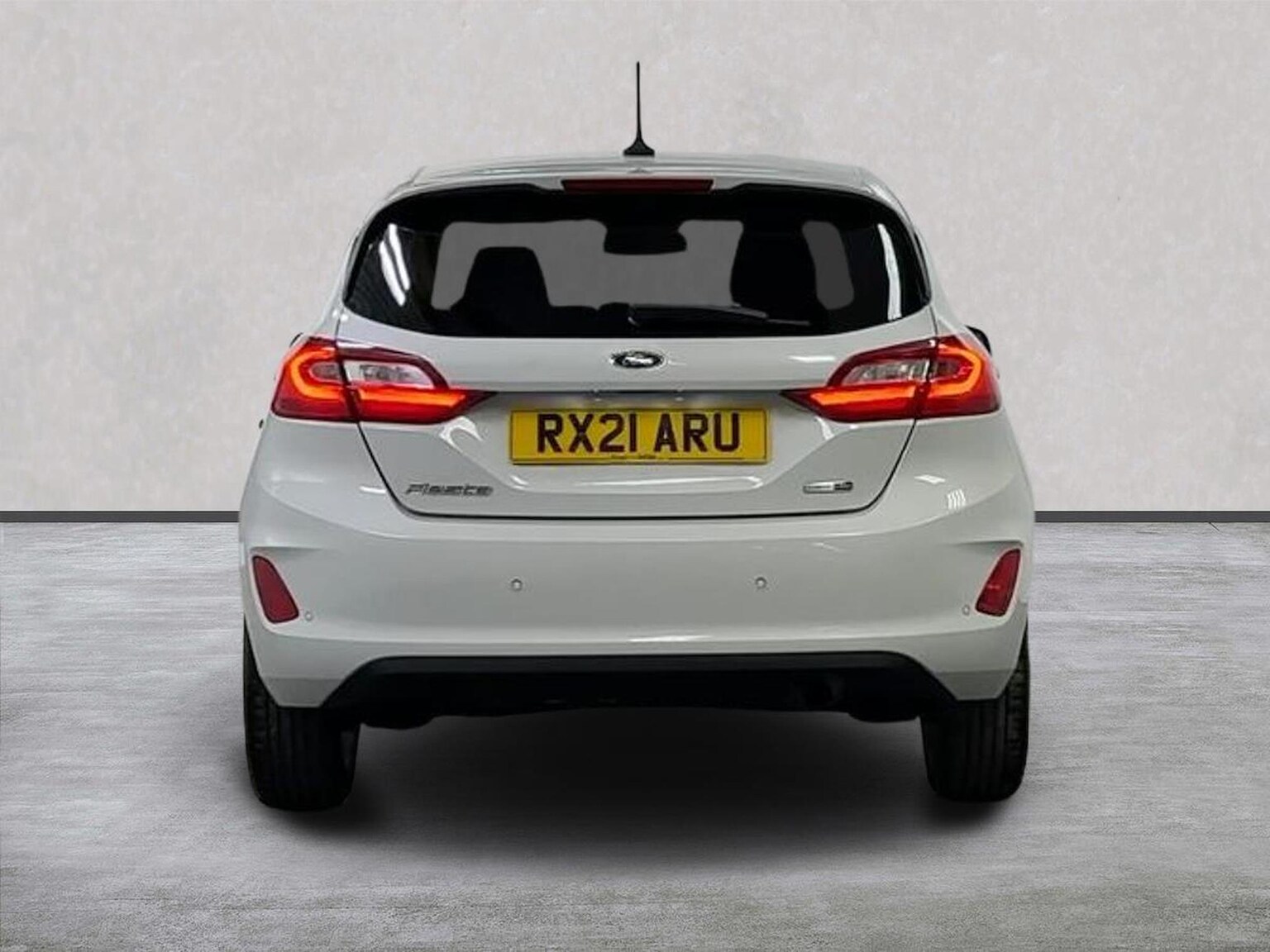

The Ford Fiesta 1.0T EcoBoost MHEV Titanium X is a refined, tech-rich 5-door hatchback combining a punchy 155?ps mild-hybrid petrol engine with a manual gearbox for lively yet efficient driving.
